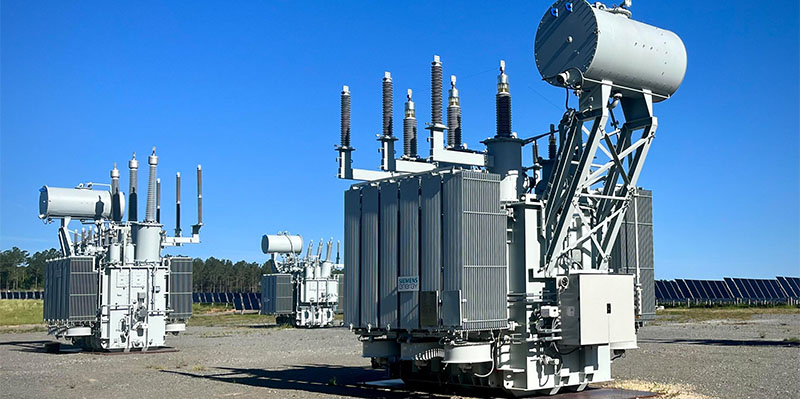

Voltage regulation in electrical systems is essential for maintaining stability and efficiency in power distribution networks. Transformers play a pivotal role in this process by ensuring that voltage levels remain within acceptable bounds. As electrical grids are subject to fluctuations, especially during periods of high demand, proper voltage regulation ensures the reliability of power supplies to homes, industries, and commercial establishments. On-Load Tap Changers (OLTC) are vital components in achieving this regulation, allowing for real-time adjustments without interrupting the supply.
Voltage fluctuations are a natural consequence of the dynamic demands placed on electrical grids. These fluctuations can arise from various sources, including variations in consumer demand, generation capacity changes, and external factors such as weather events. During peak hours, electricity demand soars, putting a strain on power generation and distribution infrastructure, which can cause voltage levels to drop. Conversely, during off-peak hours, when demand wanes, there is often an oversupply of power, leading to high voltage levels.
An On-Load Tap Changer (OLTC) is a specialized device used in transformers to adjust the output voltage without interrupting power supply. The OLTC operates by selecting different taps on the transformer’s winding, each corresponding to a different voltage level. This allows for precise voltage regulation in response to load variations and grid fluctuations. The device can adjust voltage continuously or in discrete steps, ensuring the system remains within its designed operational limits.
The OLTC adjusts the voltage by changing the number of turns in the transformer’s winding. A tap changer works by selecting different sections (taps) of the winding, each providing a different voltage. When the system detects a voltage deviation, the tap changer selects the appropriate tap to bring the voltage back to the desired level. This process involves switching between predefined voltage settings, ensuring that the transformer output matches the grid's requirements.
For distribution transformers, particularly in urban or industrial settings, continuous voltage regulation is crucial. OLTCs offer the flexibility to adjust the voltage in real-time without interrupting the power supply. This is particularly important in environments with fluctuating loads, as the transformer must adapt to changes in demand to maintain voltage stability. By using OLTCs, power utilities can mitigate the risks associated with under or over-voltage conditions, thus improving the reliability of the electrical supply.
A typical 10kV distribution transformer serves as the interface between high-voltage transmission lines and low-voltage distribution networks. These transformers step down the voltage from 10kV to 0.4kV, making it suitable for residential and commercial use. The 10kV transformer is designed to handle typical fluctuations in voltage, ensuring stable power delivery to end-users. The ability to adjust voltage levels further enhances its adaptability to varying load conditions.
Standard voltage settings for 10kV distribution transformers include taps at 10.5kV, 10kV, and 9.5kV. These taps allow the transformer to either increase or decrease the output voltage depending on the load demand and grid conditions. The most commonly used setting is 10kV, as it provides a balanced voltage for standard operations. However, adjustments to either
Adjusting the voltage using a tap changer involves several steps to ensure safety and precision:
Power Down: The first step is to disconnect the transformer from the power supply. Ensure that the load is turned off.
Disengage the High-Voltage Fuse: Use an insulated stick to open the high-voltage fuse, ensuring safety during the adjustment process.
Open the Tap Changer Cover: Carefully remove the protective cover of the tap changer and position the tap changer pin in the neutral or "open" position.
Adjust Tap Positions: Depending on whether the voltage needs to be increased or decreased, adjust the tap changer to the appropriate position.
Measure and Inspect: After making adjustments, use a DC bridge to measure the DC resistance of each winding to ensure proper balance between the phases.
As we all know, Cooper Power Systems is a sub-brand of Eaton, focusing on transformer accessories. All Cooper Power System's Tap Changers (DETC) are also well-known. Tap Changers are devices specifically used for voltage regulation and meet ANSI standards. The highest can reach 35KV, and the current has three levels: 100A, 150A and 300A. If you are looking for Cooper Power's Tap Changer in stock, I have a few models to recommend to you. These models are more commonly used in China and have better delivery time. The 100A model is 2237500C36, and the 150A is 2237471C16M. Both models are 5-position Tap Changers. I hope these tips can help you.
