1. Introduction to Transformer Cooling Methods
Transformers are the backbone of modern electrical grids, facilitating efficient power distribution. However, their operation generates significant heat, which must be effectively dissipated to maintain performance and prevent damage. Cooling mechanisms, therefore, are crucial for maintaining transformer efficiency, longevity, and safety. The following sections delve into various transformer cooling methods, each designed to meet the specific needs of different transformer sizes and operational conditions.
2. Oil-Immersed Natural Cooling (ONAN)
Oil-immersed natural cooling, or ONAN, operates on the principle of natural convection. In this method, transformer oil absorbs heat from the internal components, such as the core and windings, and then rises due to thermal expansion. As the heated oil reaches the upper parts of the transformer tank, it dissipates heat to the surrounding environment. ONAN is an ideal cooling solution for smaller transformers, typically those with ratings up to 31500kVA and voltage levels of 35kV and below. The absence of external cooling devices makes this method cost-effective and simple, albeit limited to smaller capacity units.
3. Oil-Immersed Forced Air Cooling (ONAF)
ONAF builds upon the principles of ONAN but incorporates additional cooling through forced air. Fans mounted on the transformer tank or radiator surface actively circulate air, enhancing heat dissipation. This forced air cooling method can boost the transformer’s capacity by up to 35%, making it suitable for medium-sized transformers in the range of 12500kVA to 63000kVA and voltage levels of 35kV to 110kV. The combination of oil’s natural convection and forced air improves cooling efficiency, ensuring the transformer operates at optimal temperatures even under higher loads.

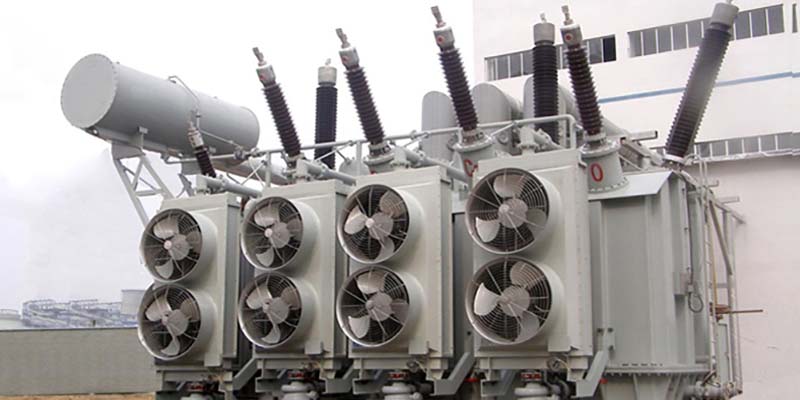

4. Oil-Immersed Forced Oil Circulation Forced Air Cooling (OFAF)
OFAF is a sophisticated cooling system that involves forced circulation of oil in addition to forced air cooling. A pump circulates oil through cooling radiators, where it absorbs heat before being returned to the transformer tank. This method significantly enhances heat dissipation and is particularly beneficial for transformers rated between 50000kVA and 90000kVA with voltage levels of 220kV. The enhanced cooling capability allows these larger transformers to operate more efficiently, even in high-demand applications.
5. Forced Oil Circulation Water Cooling (OFWF)
In some cases, transformers require even more advanced cooling solutions, especially for high-capacity units used in power plants. OFWF cooling systems combine forced oil circulation with water cooling. After the oil is pumped through the transformer’s core and windings, it is cooled in an external water-cooled heat exchanger before being returned to the transformer. This cooling method is particularly suitable for large-scale transformers with ratings of 60MVA or above and voltage levels of 220kV or higher, such as those used in hydroelectric power plants.
6. Forced Oil Circulation with Directed Oil Circulation Forced Air Cooling (ODAF)
ODAF is an advanced cooling method designed for transformers with even larger capacities, such as those exceeding 75,000kVA and voltage levels of 110kV. In this system, oil is circulated through the transformer in a directed path, ensuring more effective heat removal. The addition of forced air cooling further enhances the system’s ability to dissipate heat, making it ideal for high-demand transformers that must operate continuously under full load.
7. Forced Oil Circulation with Directed Oil Circulation Water Cooling (ODWF)
ODWF cooling systems represent the pinnacle of transformer cooling technology. This method combines forced oil circulation with water cooling in a directed configuration, ensuring optimal heat transfer. Designed for the largest transformers, including those rated 120,000kVA or above, and with voltage ratings up to 500kV, ODWF systems are crucial for ensuring that these high-performance transformers operate reliably and efficiently under the most demanding conditions.
8. Understanding Transformer Cooling System Principles
A deep understanding of transformer cooling systems is vital for optimizing their performance. Cooling is based on the fundamental principles of heat transfer: conduction, convection, and radiation. In transformer systems, oil plays a central role in conducting heat away from the core and windings, while air or water (depending on the cooling method) provides the medium for heat dissipation into the environment. By leveraging these principles effectively, transformer manufacturers can design systems that balance cost, efficiency, and operational reliability.
9. Traditional Transformer Cooling System Limitations
Traditional transformer cooling systems relied heavily on manual controls and mechanical switches. Fans were often controlled by thermostats or simple relays, which led to inefficiencies, especially when all fans had to operate simultaneously. The substantial electrical surges at startup could damage sensitive components, and the lack of protection mechanisms like overload or phase loss protections often led to system failures. Furthermore, such systems caused significant energy waste, as fans would run even when cooling was not required.
10. Innovations in Cooling Control Systems
With advancements in control technology, modern transformer cooling systems are becoming more sophisticated. Automated control systems now monitor the temperature and load status of transformers, adjusting fan speeds or activating additional cooling mechanisms only when necessary. This results in more efficient energy usage, reduced wear on electrical components, and improved overall reliability. Modern cooling control systems also feature enhanced protections, reducing the risk of failure due to overloads or other
