This ANSI 5 kV transformer bushing series covers current ratings from 630 A to 4000 A. Available catalog configurations include 2-hole, 4-hole and 6-hole terminal pads, several conductor thread sizes, and an extended-tail 1200 A option. The model table consolidates the dimensional data, mounting-hole patterns, creepage distance and catalog reference codes for selection and quotation.

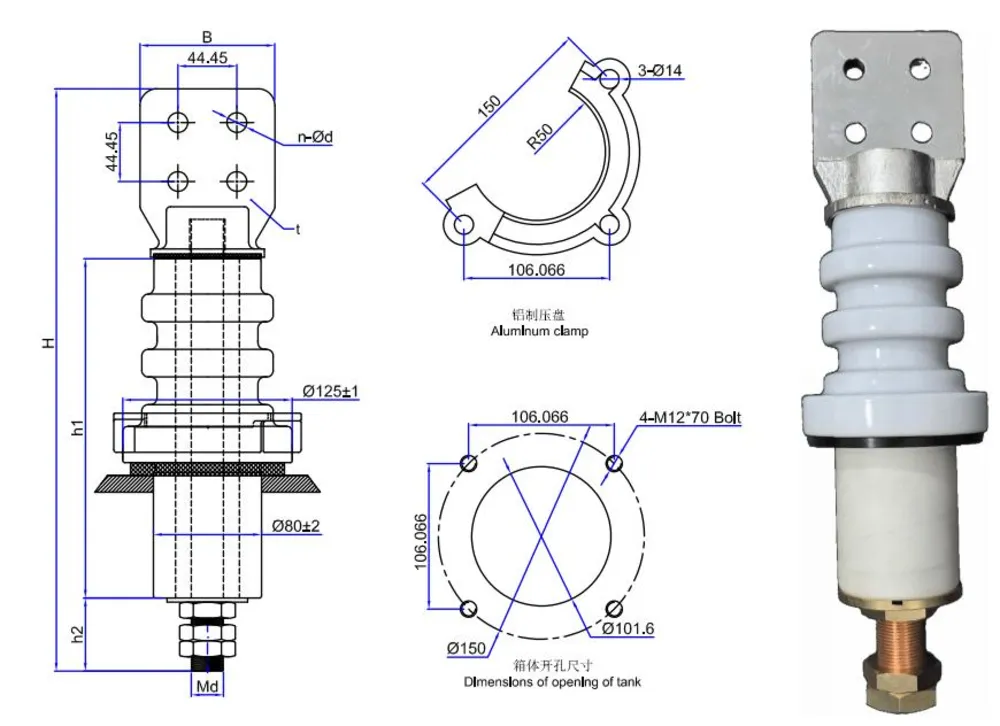

| Model | H | h1 | h2 | Md | B | Mounting Holes | t | Creepage | Code | Note |
|---|---|---|---|---|---|---|---|---|---|---|
| ANSI-5KV-630A-2-HOLE | 422 | 250 | 70 | 3/4"-10UNC | 101.6 | 2×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.069 | — |
| ANSI-5KV-630A-4-HOLE | 450 | 250 | 70 | 3/4"-10UNC | 101.6 | 4×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.068 | — |
| ANSI-5KV-630A-6-HOLE | 495 | 250 | 70 | 3/4"-10UNC | 101.6 | 6×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.068-6K | — |
| ANSI-5KV-1000A-6-HOLE | 495 | 250 | 70 | 1-1/4"-12UNF | 101.6 | 6×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.048 | — |
| ANSI-5KV-1200A-4-HOLE | 450 | 250 | 70 | 1-1/4"-12UNF | 101.6 | 4×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.075 | — |
| ANSI-5KV-1200A-4-HOLE-EXTENDED-TAIL-220MM | 570 | 250 | 70 | 1-1/4"-12UNF | 101.6 | 4×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.065 | Source model indicates extended lower tail '220'. |
| ANSI-5KV-1200A-6-HOLE | 495 | 250 | 70 | 1-1/4"-12UNF | 101.6 | 6×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.075-6K | — |
| ANSI-5KV-2000A-4-HOLE | 450 | 250 | 70 | M42×2.0 | 101.6 | 4×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.058 | — |
| ANSI-5KV-3150A-4-HOLE | 450 | 250 | 70 | M48×2.0 | 101.6 | 4×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.074 | — |
| ANSI-5KV-4000A-6-HOLE | 495 | 250 | 70 | M52×2.0 | 101.6 | 6×Ø14.3 | 12.7 | 137.4 | 12XD.MBTG.055 | — |
Dimensions are in millimeters unless otherwise indicated. Thread designations and reference codes are reproduced from the source catalog. A dash indicates that no value is listed in the source table.
