ANSI 15 kV and 25 kV transformer bushing series for 125 A to 600 A with 2-hole, 4-hole and 6-hole terminal pad variants.
Product Code: CH200PLG The Chardon Bushing Well Insulated Plug is an accessory product to 15/25/28/35 kV 200A bushing well. It is designed to physically seal and electrically insulate the Loadbre
Product Code: CH200BW The Chardon 200A 15kV,25kV,28kV and 35kV Class bushing well meets all requirements of IEEE standard 386-1995 (separable insulated connector system). It is designed for the te
Product Code: 42-BE1250 The Chardon 42kV 1250A Bushing Extender can be used for temporary or permanent applications and provides a submersible, fully shielded insulated connection between energized
Product Code: 36-DIB630 The Chardon 36 kV Interface C equipment bushing meets the full requirement of CENELEC EN 50180 and IEC 60137, provides a bolted interface made of quality epoxy. The part i
Product Code: 72-DIB630，72-DIB1250 The Chardon 72.5 kV Interface F equipment bushing meets the full requirement of CENELEC EN 50181 and IEC 60137, provides a bolted interface made of quality epoxy.
Product Code: 36-DIB400 The Chardon 36 kV Interface B equipment bushing provides a plug-in interface made of quality epoxy, meeting the full requirements of CENELEC EN 50180 and IEC 60137. The par
Product Code: 24-DBI250 The Chardon Deadbreak Bushing Insert threads into a standard 250A bushing well. It is a fully shielded, fully submersible separable connector designed for deadbreak operatio
Product Code: 24-DIB250 The Chardon 24kV Interface A equipment bushing meets the full requirement of EN 50180, EN 50181&IEC 60137, provides a sliding interface made of quality epoxy. Down
Product Code: 25-BE600, 35-BE900 The Chardon 25/35 kV 600/900A bushing Extender allows for coupling reducing tap plugs, connecting plugs and apparatus bushings. When assembled to mating apparatus,
Product Code: 25-SOB600 The Insulated Standoff bushings are designed to be installed in the parking stand bracket mounted on the transformer or other apparatus. A cable is connected to the system g

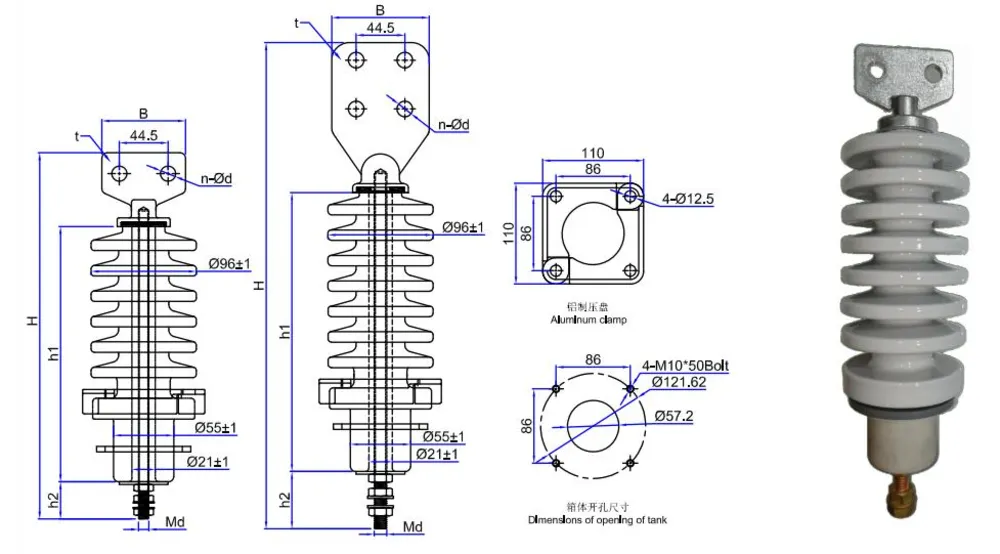

This ANSI transformer bushing series covers 15 kV and 25 kV ratings with current options from 125 A to 600 A. Catalog variants use 2-hole, 4-hole or 6-hole terminal pads and 6-shed or 7-shed profiles. The comparison table lists each model together with its dimensions, conductor thread, mounting-hole arrangement, creepage distance and reference code. Any source-table inconsistency is identified in the note column.
| Model | Shed | H | h1 | h2 | Md | B | Mounting Holes | t | Creepage | Code | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI-15KV-125A-2-HOLE | 6-SHED | 339 | 233 | 39 | 3/8"-16UNC | 76.2 | 2×Ø14.3 | 6.35 | 330 | 12XD.401.G13-B | — |
| ANSI-15KV-125A-4-HOLE | 6-SHED | 409 | 233 | 39 | 3/8"-16UNC | 89 | 4×Ø14.3 | 12.7 | 330 | 12XD.401.G13-I | — |
| ANSI-15KV-250A-2-HOLE | 6-SHED | 339 | 233 | 39 | 1/2"-13UNC | 76.2 | 2×Ø14.3 | 6.35 | 330 | 12XD.401.G13-C | — |
| ANSI-15KV-250A-4-HOLE | 6-SHED | 409 | 233 | 39 | 1/2"-13UNC | 89 | 4×Ø14.3 | 12.7 | 330 | 12XD.401.G13-D | — |
| ANSI-15KV-250A-6-HOLE | 6-SHED | 452.5 | 233 | 39 | 1/2"-13UNC | 89 | 6×Ø14.3 | 12.7 | 330 | 12XD.401.G13-M | — |
| ANSI-15KV-417A-2-HOLE | 6-SHED | 339 | 233 | 39 | 5/8"-11UNC | 76.2 | 2×Ø14.3 | 6.35 | 330 | 12XD.401.G13-G | — |
| ANSI-15KV-417A-4-HOLE | 6-SHED | 409 | 233 | 39 | 5/8"-11UNC | 89 | 4×Ø14.3 | 12.7 | 330 | 12XD.401.G13-E | — |
| ANSI-15KV-417A-6-HOLE | 6-SHED | 452.5 | 233 | 39 | 5/8"-11UNC | 89 | 4×Ø14.3 | 12.7 | 330 | 12XD.401.G13-J | Model designation says 6-hole, while the source dimension table lists 4×Ø14.3. |
| ANSI-15KV-600A-4-HOLE | 6-SHED | 409 | 233 | 39 | 3/4"-10UNC | 89 | 6×Ø14.3 | 12.7 | 330 | 12XD.401.G13-F | Model designation says 4-hole, while the source dimension table lists 6×Ø14.3. |
| ANSI-25KV-125A-2-HOLE | 7-SHED | 364 | 254 | 43 | 3/8"-16UNC | 76.2 | 2×Ø14.3 | 6.35 | 406.4 | 12XD.401.A04 | — |
| ANSI-25KV-250A-2-HOLE | 7-SHED | 364 | 254 | 43 | 1/2"-13UNC | 76.2 | 2×Ø14.3 | 6.35 | 406.4 | 12XD.401.030 | — |
| ANSI-25KV-250A-4-HOLE | 7-SHED | 433 | 254 | 43 | 1/2"-13UNC | 89 | 4×Ø14.3 | 12.7 | 406.4 | 12XD.401.A02 | — |
| ANSI-25KV-250A-6-HOLE | 7-SHED | 477 | 254 | 43 | 1/2"-13UNC | 89 | 6×Ø14.3 | 12.7 | 406.4 | 12XD.401.A05 | — |
| ANSI-25KV-417A-2-HOLE | 7-SHED | 364 | 254 | 43 | 5/8"-11UNC | 76.2 | 2×Ø14.3 | 6.35 | 406.4 | 12XD.401.A03 | — |
| ANSI-25KV-417A-4-HOLE | 7-SHED | 433 | 254 | 43 | 5/8"-11UNC | 89 | 4×Ø14.3 | 12.7 | 406.4 | 12XD.401.A08 | — |
| ANSI-25KV-417A-6-HOLE | 7-SHED | 477 | 254 | 43 | 5/8"-11UNC | 89 | 6×Ø14.3 | 12.7 | 406.4 | 12XD.401.A07 | — |
Dimensions are in millimeters unless otherwise indicated. Thread designations and reference codes are reproduced from the source catalog. A dash indicates that no value is listed in the source table.
