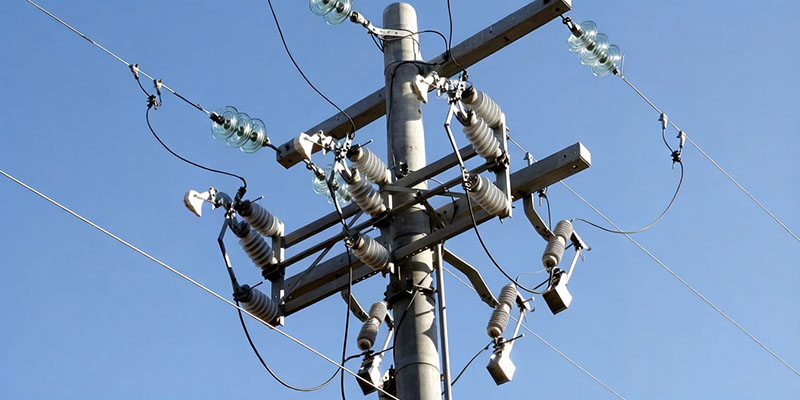

When selecting Type-L dropout fuses, beyond rated current and interrupting capacity, the choice of insulator material often poses the greatest dilemma for procurement personnel: the classic, durable "ceramic," or the lightweight, pollution-resistant newcomer "polymer silicone rubber"? Eaton Cooper's technical manual reveals that these two materials do not represent a simple "which is better" choice, but rather depend on your installation environment.
1. Ceramic Insulators: The Classic Choice with Rigid Protection
Ceramic is the longest-serving insulating material in the distribution field. Eaton's Type-L ceramic insulators feature a high-strength process design, with core advantages including:
Exceptional Aging Resistance: Ceramic material is virtually unaffected by UV rays, maintaining extremely stable performance under strong sunlight.
High Hardness for Bird Strike Resistance: In areas with frequent bird activity, the hard surface of ceramic effectively prevents damage from pecking.
Cost-Effectiveness: For standard environments, ceramic models typically offer higher cost efficiency.
2. Polymer Silicone Rubber: The "Special Forces" for Harsh Environments
As power grids extend into polluted and high-altitude areas, polymer (silicone rubber) insulators are becoming increasingly popular. Eaton Cooper's technical documentation specifically highlights their performance under extreme conditions:
Anti-Cracking Design: Traditional ceramics can crack if moisture seeps in due to poor sealing and freezes during winter, creating expansive forces. Eaton's polymer models employ an organic vulcanization bonding process, completely fusing metal components with insulating material to eliminate moisture ingress.
Self-Cleaning and Pollution Flashover Resistance: Silicone rubber is hydrophobic. In coastal salt fog or heavily industrialized, dusty areas, water droplets cannot form a continuous film on its surface, significantly reducing the probability of "pollution flashover" (a discharge phenomenon that causes power outages).
Lightweight: Polymer models are approximately 30%-50% lighter than ceramic ones, meaning reduced labor intensity and safer installation processes for utility workers performing aerial tasks.
3. In-Depth Technical Comparison: Creepage Distance
According to data on page 9 of the PDF catalog, we can see the differences in "creepage distance" between materials (a core indicator of pollution resistance):
|
Voltage Rating
|
Insulator Material
|
Creepage Distance (mm)
|
Recommended Environment
|
|
12kV
|
Ceramic
|
220 ~ 240
|
Urban standard environments, indoor, clean areas
|
|
12kV
|
Polymer (Standard)
|
320
|
Industrial zones, windy/sandy areas
|
|
12kV
|
Polymer (Heavy-Duty)
|
720
|
Coastal salt fog, areas near heavy chemical plants
|
4. How to Make the Final Decision?
If you are located in an inland, dry area with a limited budget, ceramic Type-L fuses are a safe and economical choice.
If you are in a coastal, humid, high-altitude, or mountainous area with difficult maintenance access, polymer silicone rubber models are highly recommended. Although their initial unit cost is slightly higher, they can significantly reduce outages caused by flashover and long-term replacement costs.
